Description

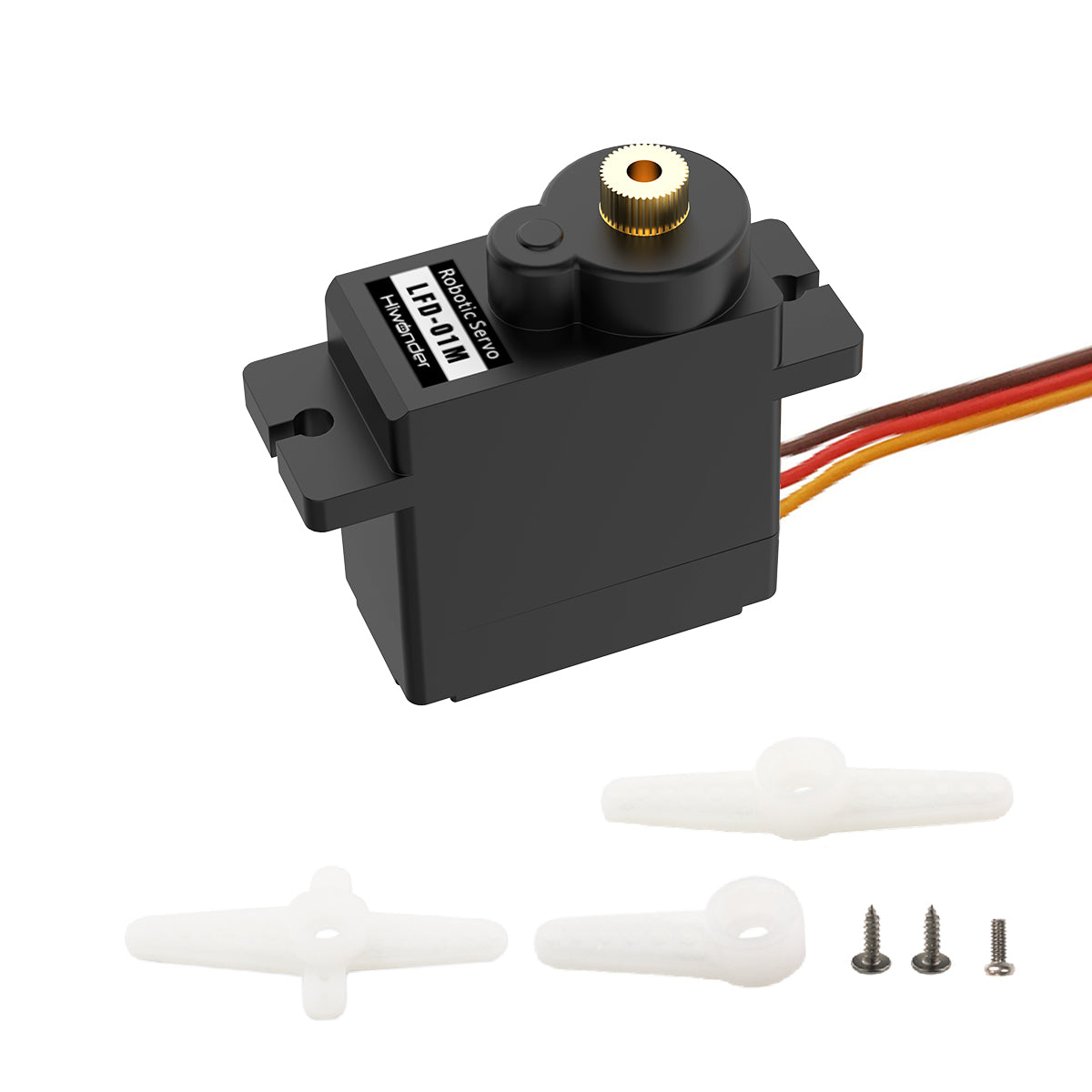

micro metal gear servo Hiwonder LFD-01M Robot Servo 6V 14g Micro Servo Anti-blocking with Metal Gear LFD-01M Robot ServoFeature Feature Working voltage is 4. 8 6V. Built in anti blocking algorithm is more durable. Optimize the design of metal gears to make the operation more smooth. Using the high quality material for better performance. Provide 51, Arduino, STM32 servo control program. Product Parameters Product weight: 14g Product size: 22. 3*12*23. 2mm Working voltage: 4. 8 6V Rotation speed: 0. 12sec 60 6V Stalled rotor torque: 1. 8KG. cm 6V Rotation range: 0~180
Feature
Feature
- ①Working voltage is 4.8-6V.
- ②Built-in anti-blocking algorithm is more durable.
- ③Optimize the design of metal gears to make the operation more smooth.
- ④Using the high quality material for better performance.
- ⑤Provide 51, Arduino, STM32 servo control program.
Product Parameters
- Product weight: 14g
- Product size: 22.3*12*23.2mm
- Working voltage: 4.8-6V
- Rotation speed: 0.12sec/60° 6V
- Stalled rotor torque: ≥1.8KG.cm 6V
- Rotation range: 0~180°
- No-load current: ≤80mA
- Locked rotor current: ≤1.1A
- Control method: PWM pulse width control
- PWM pulse width range: 500~2500us, corresponding to 0~180°
- Gear type: metal teeth
- Product line length: 455±5mm (Exposed without plug)
- Applicable to: various types of bionic robot joints.
Anti-blocking servo
The LFD-01M servo has a built-in protection algorithm to ensure that the servo will not burn out due to stalling or collision, thereby greatly extending the service life of the servo.
Metal Gear
Upgrade the metal gear design to improve the running performance and the gear will be more durable.
High-quality Materials
The LFD-01M steering gear is made of high-quality imported materials, which is high-end and durable.
Various Application Scenarios
Specifications
| Item | Specification |
| Product weight | 14g |
| Product size | 22.3*12*23.2mm |
| Working voltage | 4.8-6V |
| Rotation speed | 0.12sec/60° 6V |
| Stalled rotor torque | ≥1.8KG.cm 6V |
| Rotation range | 0~180° |
| No-load current | ≤80mA |
| Locked rotor current | ≤1.1A |
| Control method | PWM pulse width control |
| PWM pulse width range | 500~2500us, corresponding to 0~180° |
| Gear type | metal teeth |
| Product line length | 455±5mm (Exposed without plug) |
| Applicable to | various types of bionic robot joints. |
